PRODUCTS

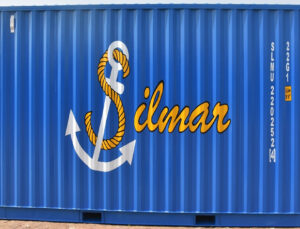

20 FEET GP CONTAINER (20’X8’X8.5′)

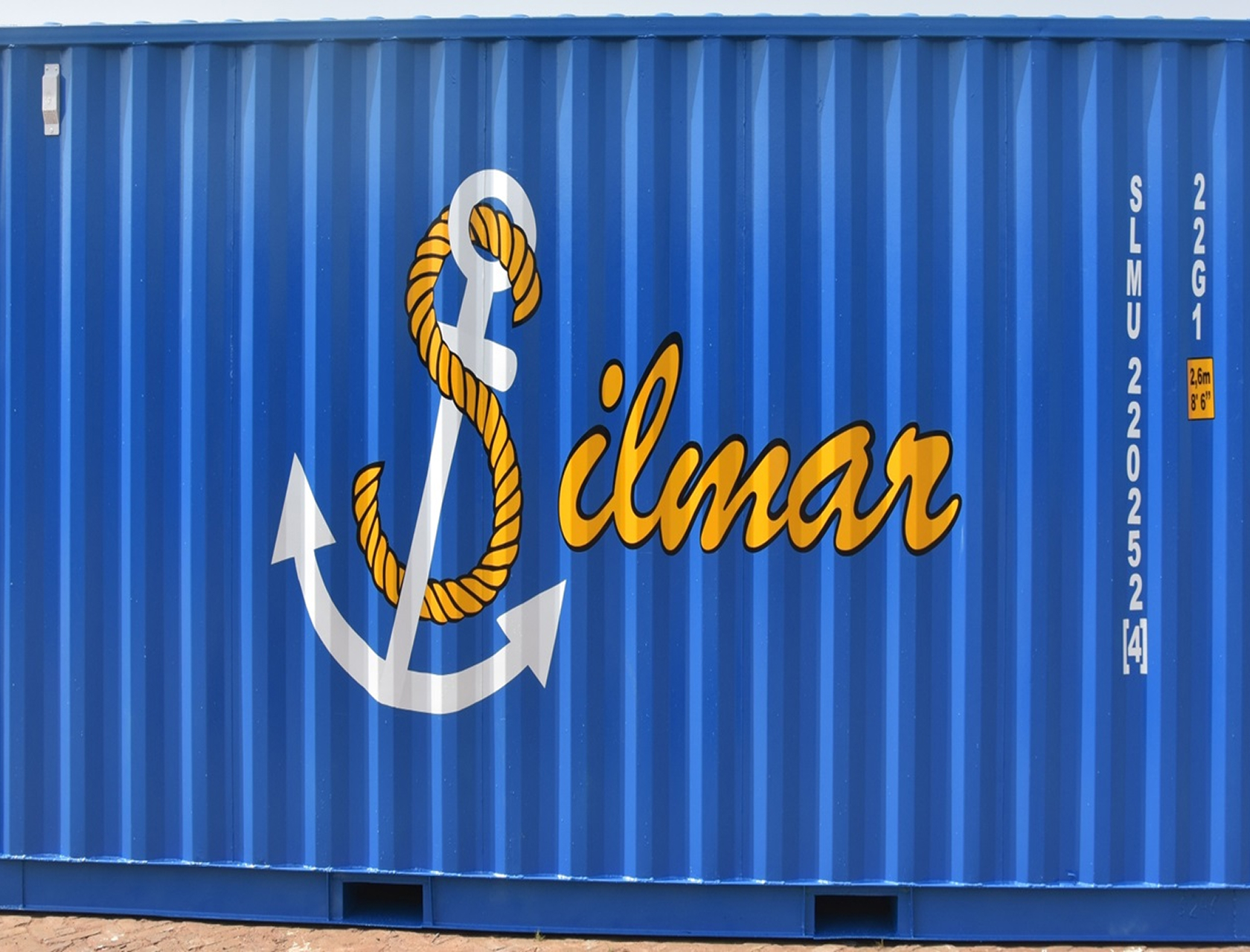

20 ft GP containers (1)

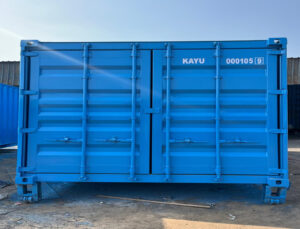

20ft GP containers (1)

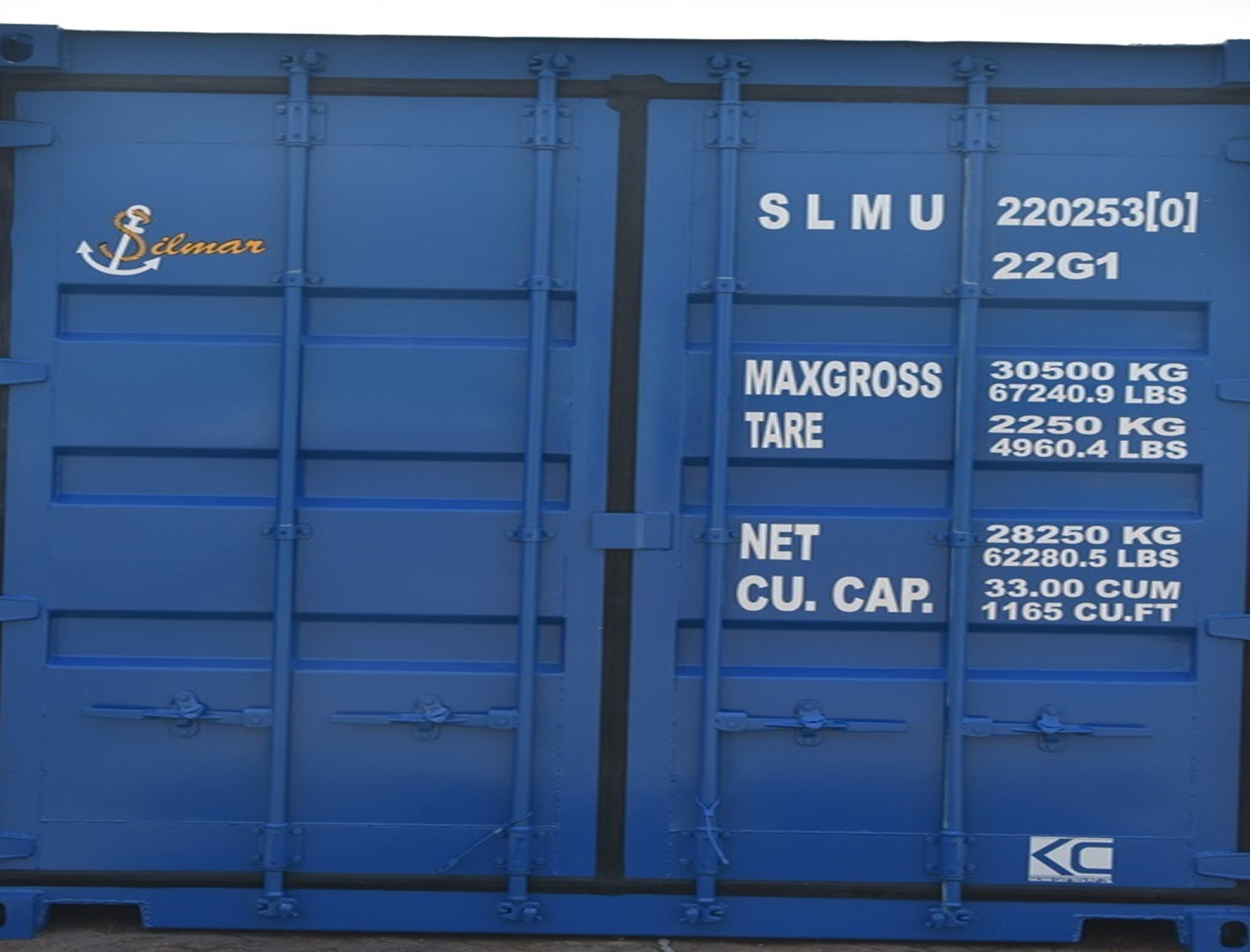

20 ft GP containers (2)

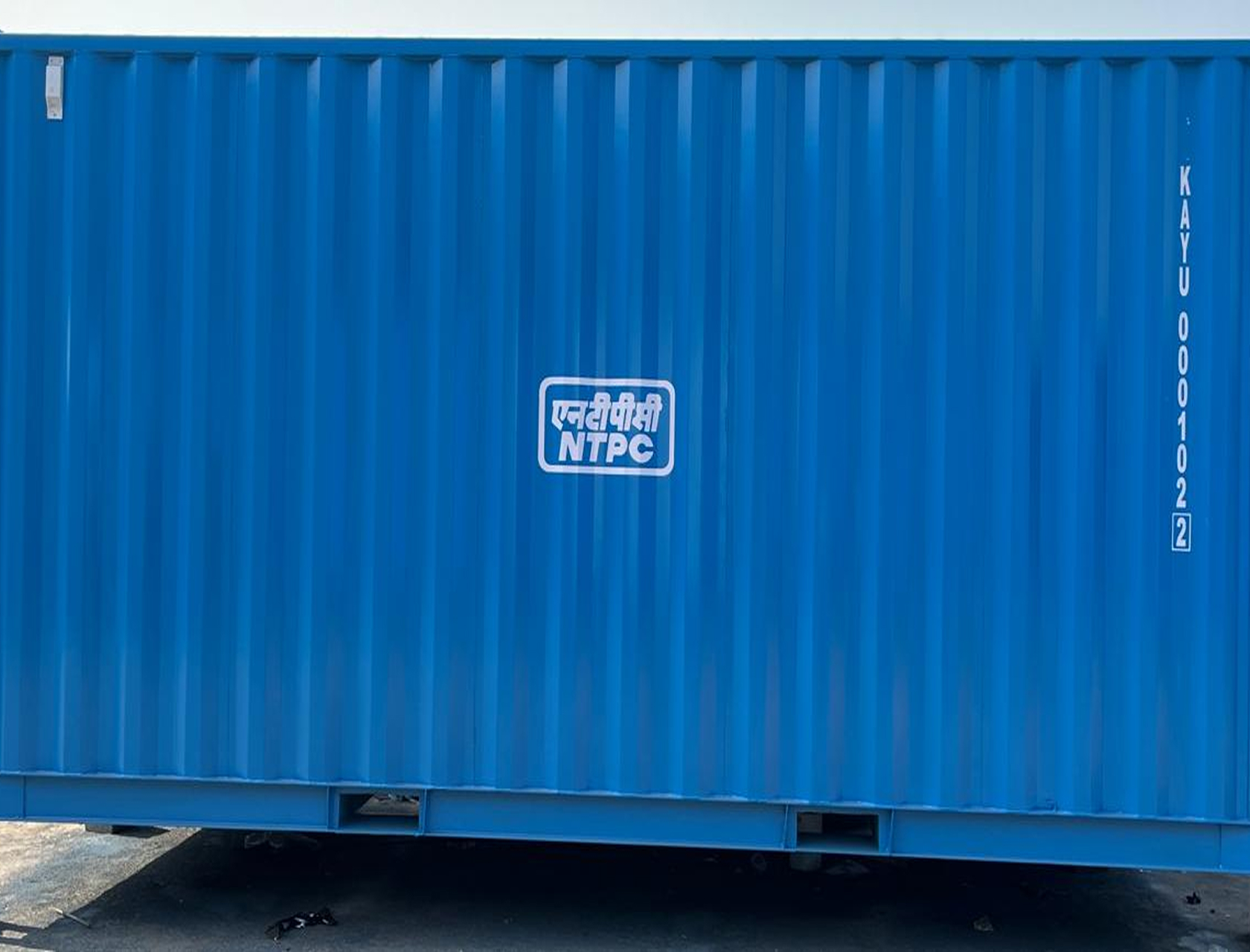

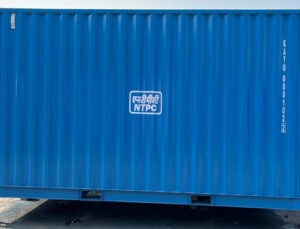

20ft GP containers (2)
20 ft GP containers (1) 20ft GP containers (1) 20 ft GP containers (2) 20ft GP containers (2)
20 Feet GP CONTAINER (20’X8’X8.5)
EXTERNAL Length 6058+0,-6
Width 2438+0,-5
Height 2590+0,-5
INTERNAL Length 5900+0,-5
Width 2346+0,-5
Height 2389+0,-5
DOOR OPENING Width 2338+0,-5
Height 2281+0,-5
GROSS WEIGHT 30,500 KG 67,240 LBS
TARE WEIGHT (±2%) 2250 KG 4960 LBS
MAX. PAYLOAD 28,250 KG 62,875 LBS
STACKING TEST
LOAD PER POST		 96,012 KG 211,670 LBS

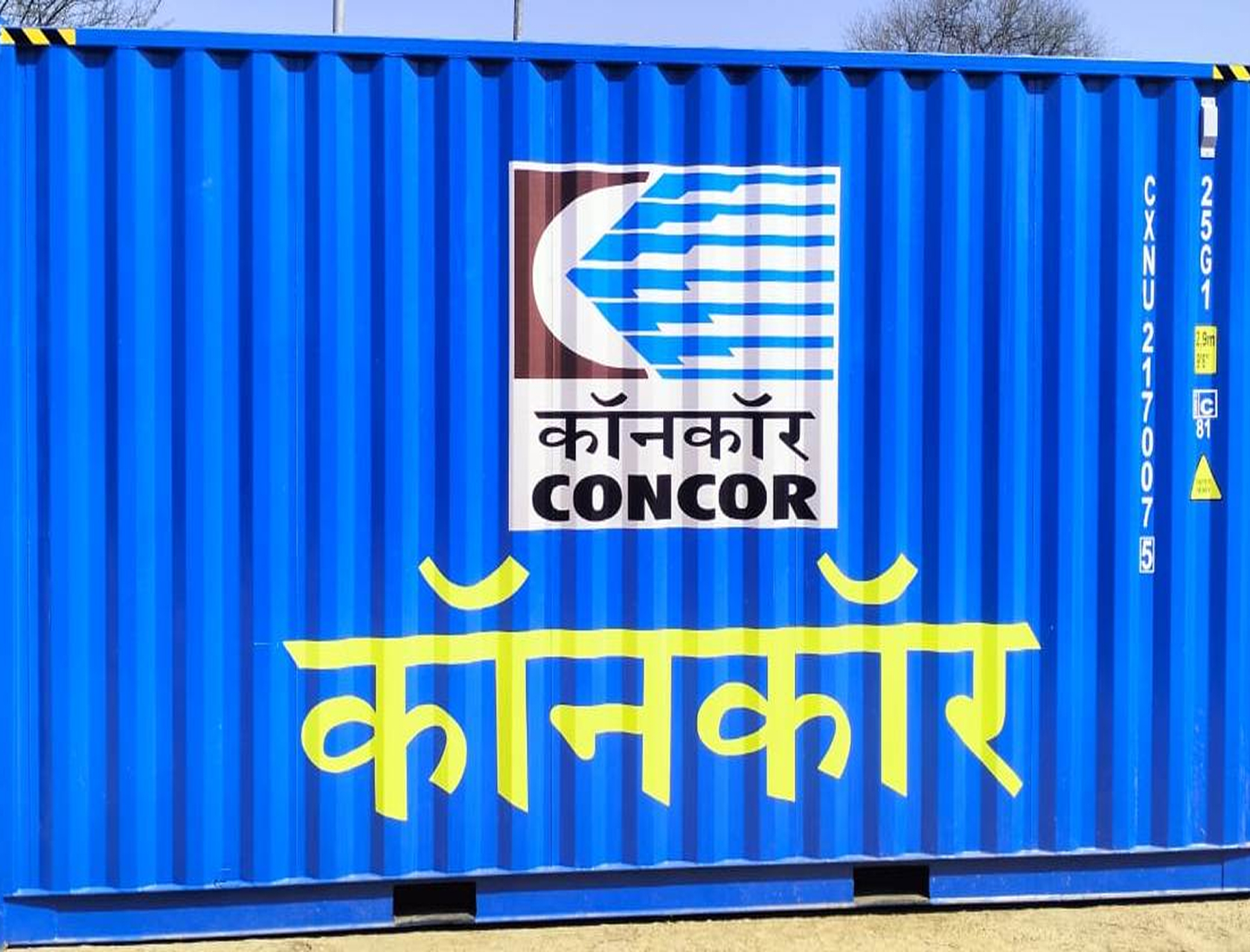

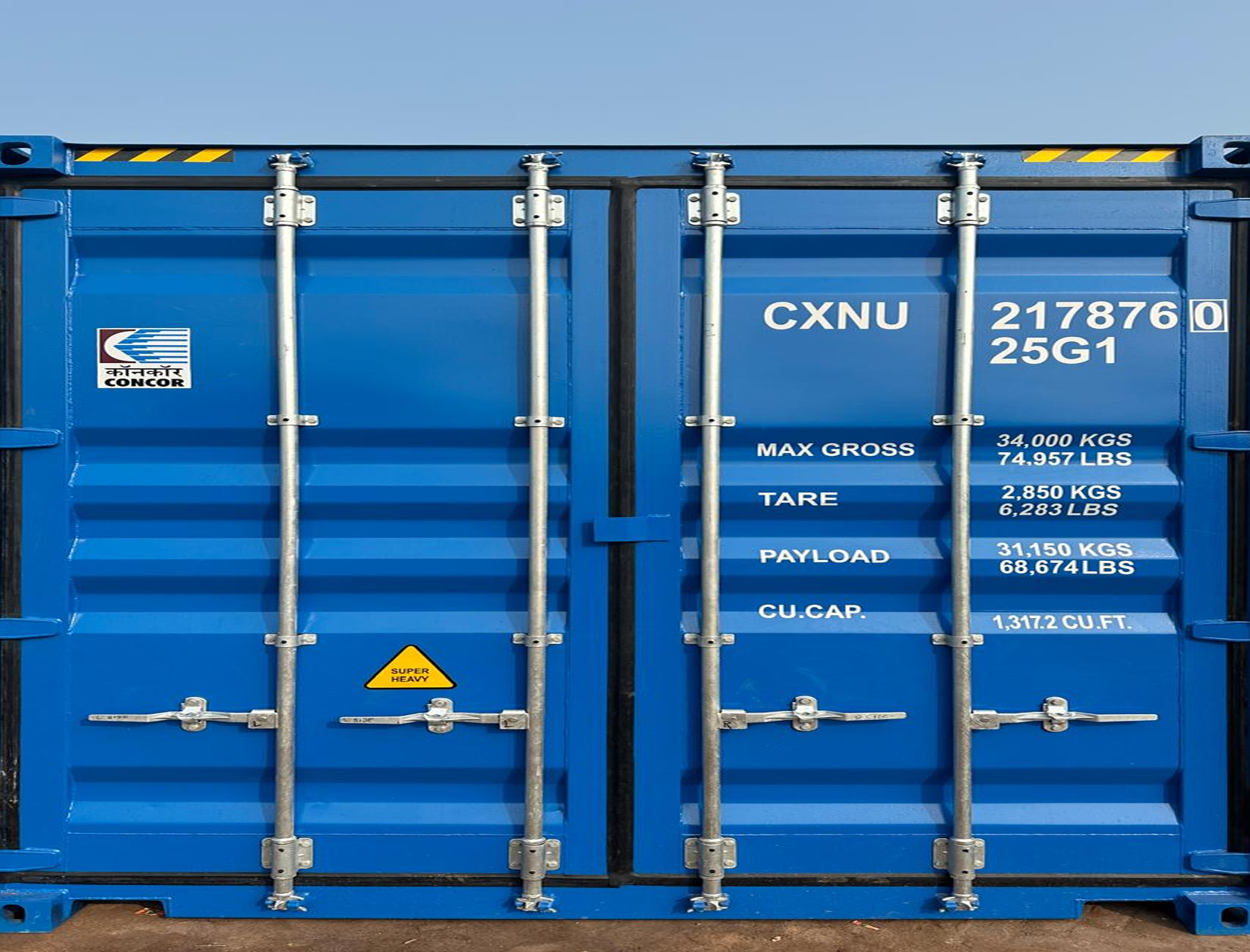

20 FEET HC CONTAININE (20’X8’X9.5′)

20ft HC containers (2)
20ft HC containers (1)
20ft HC containers (2) 20ft HC containers (1)
20 FEET HC CONTAINER (20'X8'X8.5')
EXTERNAL Length 6058+0,-6
Width 2438+0,-5
Height 2896+0,-5
INTERNAL Length 5900+0,-5
Width 2346+0,-5
Height 2695+0,-5
DOOR OPENING Width 2338+0,-5
Height 2587+0,-5
GROSS WEIGHT 30,950 KG 68,233 LBS
TARE WEIGHT (±2%) 2450 KG 5401 LBS
MAX. PAYLOAD 28,500 KG 62,831 LBS
STACKING TEST
LOAD PER POST		 96,012 KG 211,670 LBS

20 FEET HC SIDE ACCESS (20’X8’X9.5′

20ft HC SIDE ACCESS
20ft HC SIDE ACCESS
20 FEET HC SIDE ACCESS (20'X8'X9.5')
EXTERNAL Length 6058+0,-6
Width 2438+0,-5
Height 2896+0,-5
INTERNAL Length 5909+0,-5
Width 2350+0,-5
Height 2697+0,-5
DOOR OPENING REAR Width 2338+0,-5
Height 2592+0,-5
DOOR OPENING SIDE Width 1510+0,-5
Height 2480+0,-5
GROSS WEIGHT 36,500 KG 80,468 LBS
TARE WEIGHT (±2%) 3,100KG 6,834 LBS
MAX. PAYLOAD 33,400 KG 73,634 LBS
STACKING TEST
LOAD PER POST		 96,000 KG 211,644 LBS

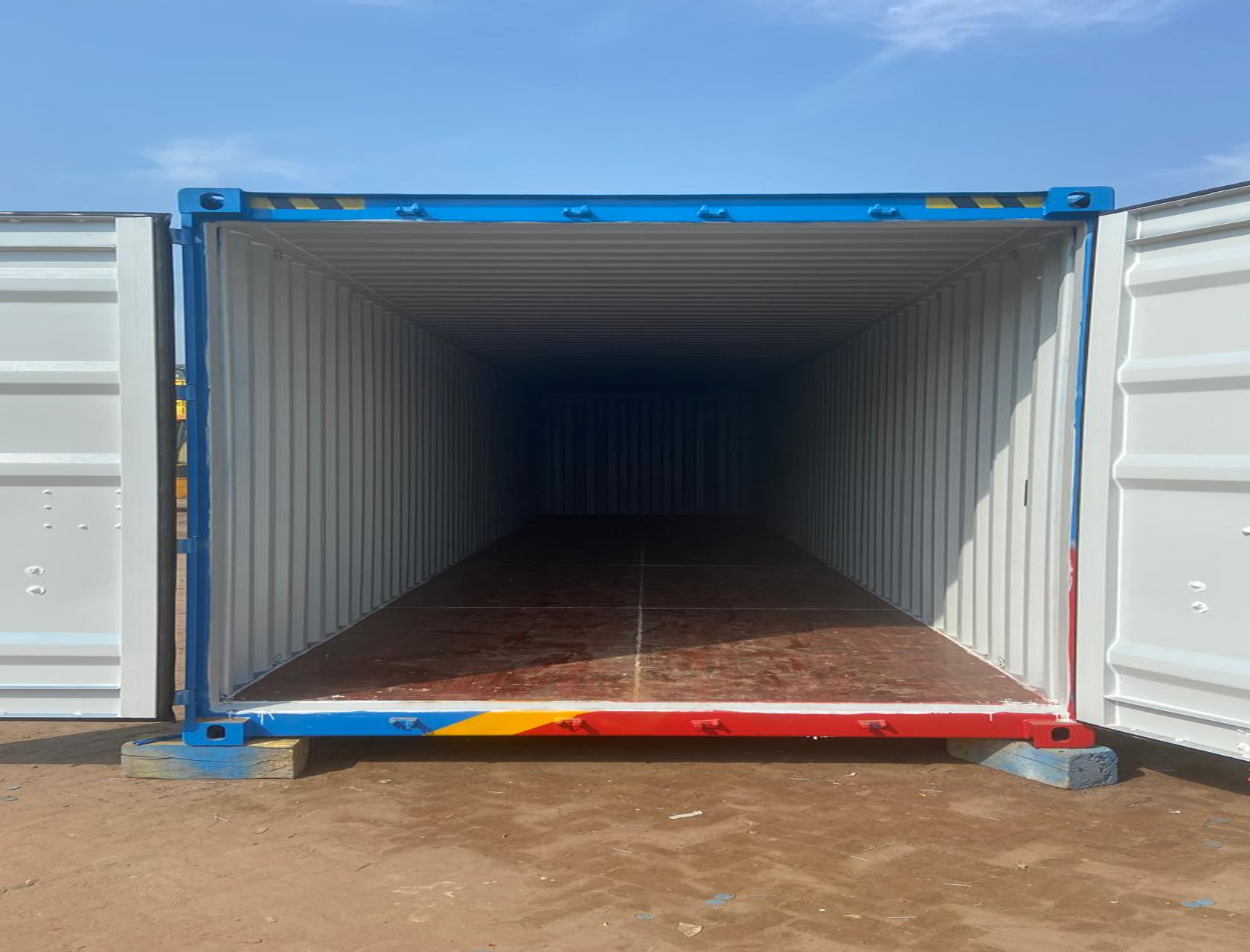

40 FEET HC CONTAINER (40’X8’X9.5′)

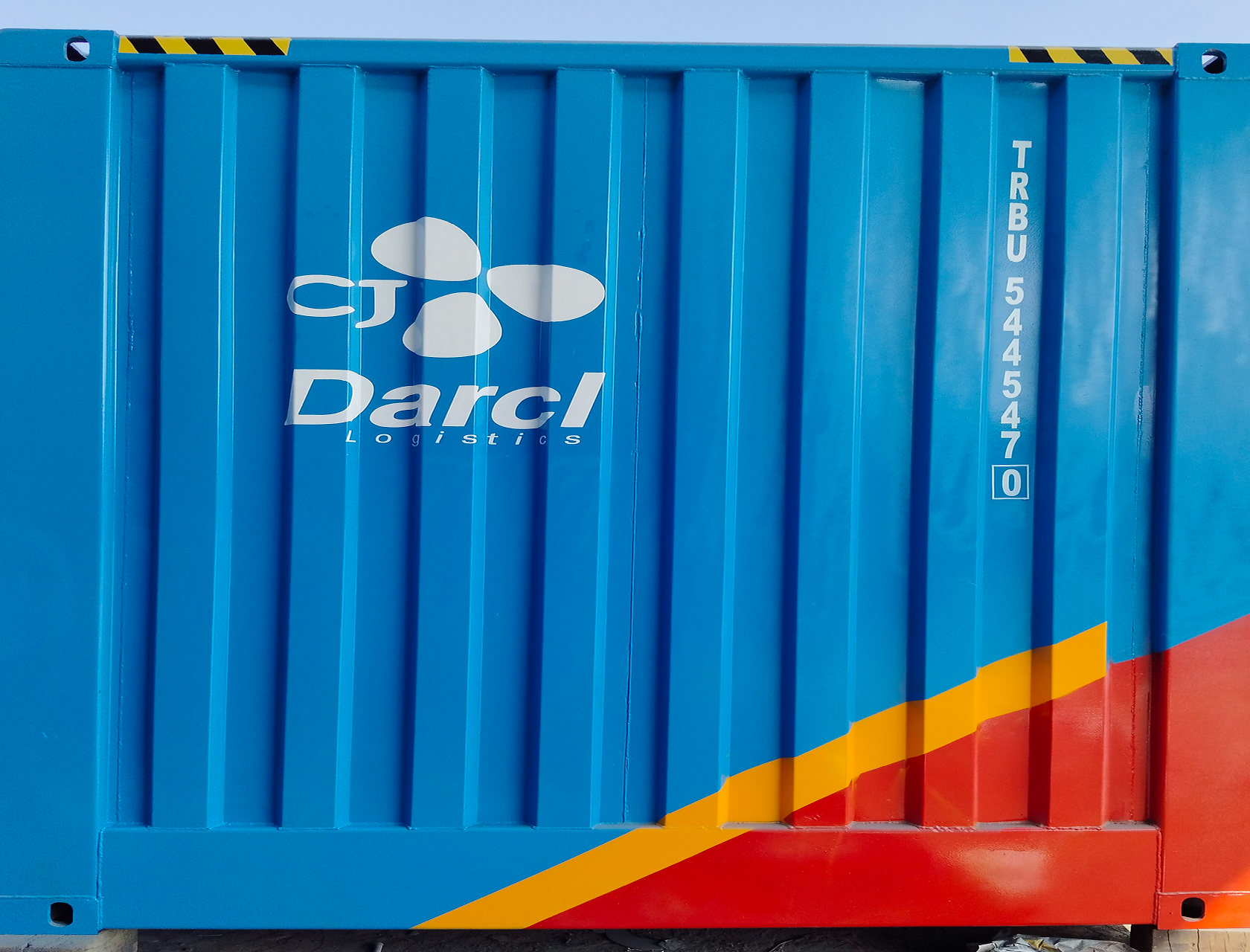

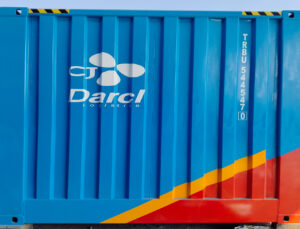

40 FEET HC CONTAINER-1
40 FEET HC CONTAINER
40 FEET HC CONTAINER-1 40 FEET HC CONTAINER
40 FEET HC CONTAINER (40'X8'X9.5')
EXTERNAL Length 12192+0,--10
Width 2438+0,-5
Height 2896+0,-5
INTERNAL Length 12027+0,-10
Width 2350+0,-5
Height 2692+0,-5
DOOR OPENING Width 2338+0,-5
Height 2594+0,-5
GROSS WEIGHT 40,000 KGS 88,185 LBS
TARE WEIGHT (±2%) 4,700 KGS 10,362 LBS
MAX. PAYLOAD 35,300 KGS 77,823 LBS
STACKING TEST
LOAD PER POST		 96,000 KGS 211,644 LBS
FLOOR STRENGTH 7,260 KGS 16,006 LBS

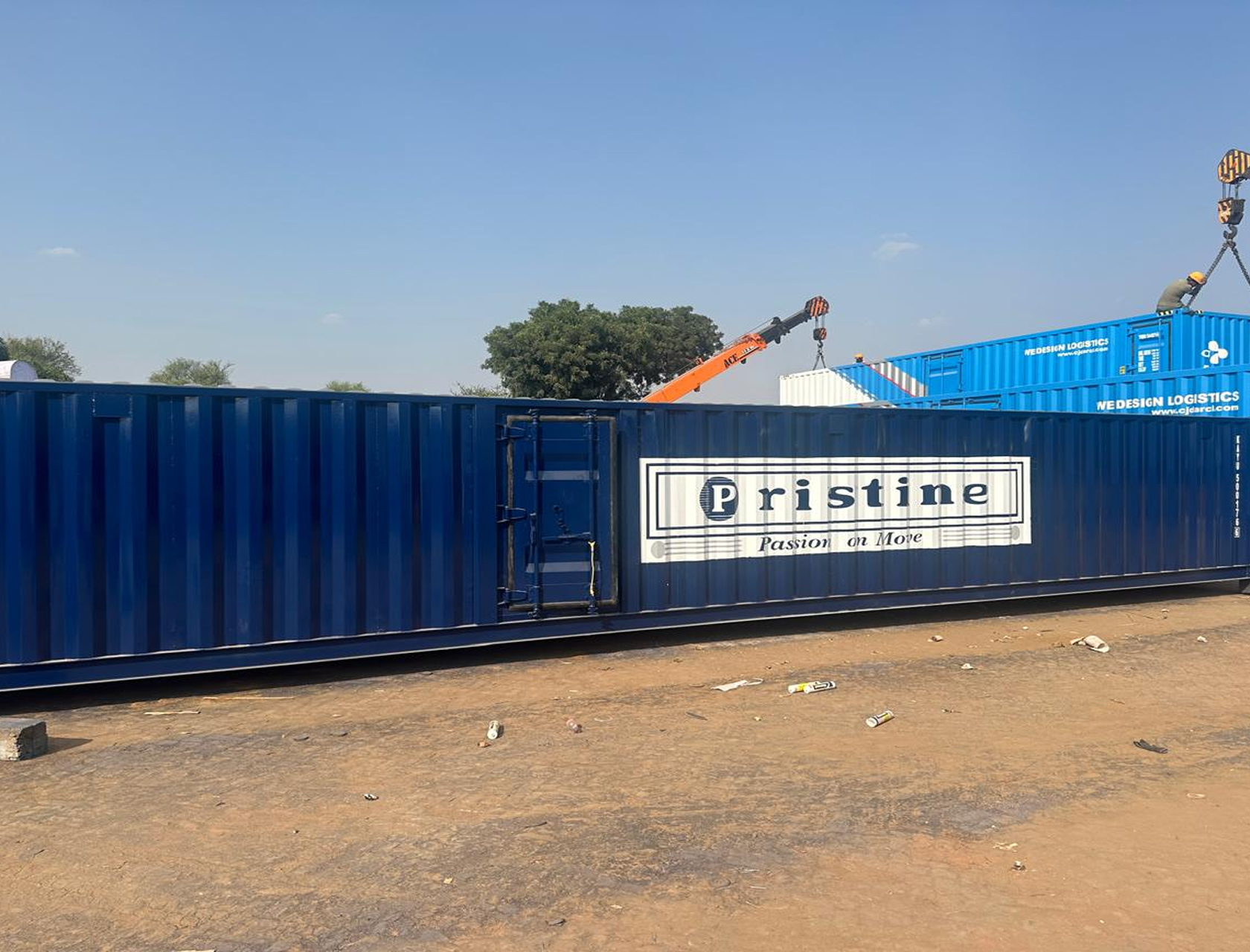

40 FEET SIDE ACCESS DWARF CONTAINER (40,X8.5’X6.3)

40 FEET SIDE ACCESS DWARF CONTAINER
40 FEET SIDE ACCESS DWARF CONTAINER
40 FEET SIDE ACCESS DWARF CONTAINER (40'X8.5'X6.3')
EXTERNAL Length 12192+0,-10
Width 2600+0,-5
Height 1930+0,-5
INTERNAL Length 12038+0,-5
Width 2508+0,-5
Height 1792+0,-5
DOOR OPENING Width 2500+0,-5
Height 1719.5+0,-5
SIDE DOOR OPENING Width 764+0,-5
Height 1482+0,-5
GROSS WEIGHT 36,00 KG 79,366 LBS
TARE WEIGHT (±2%) 4300 KG 9479 LBS
MAX. PAYLOAD 31,700 KG 69,886 LBS
STACKING TEST
LOAD PER POST		 41'148 KG 90,715 LBS

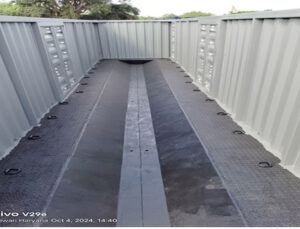

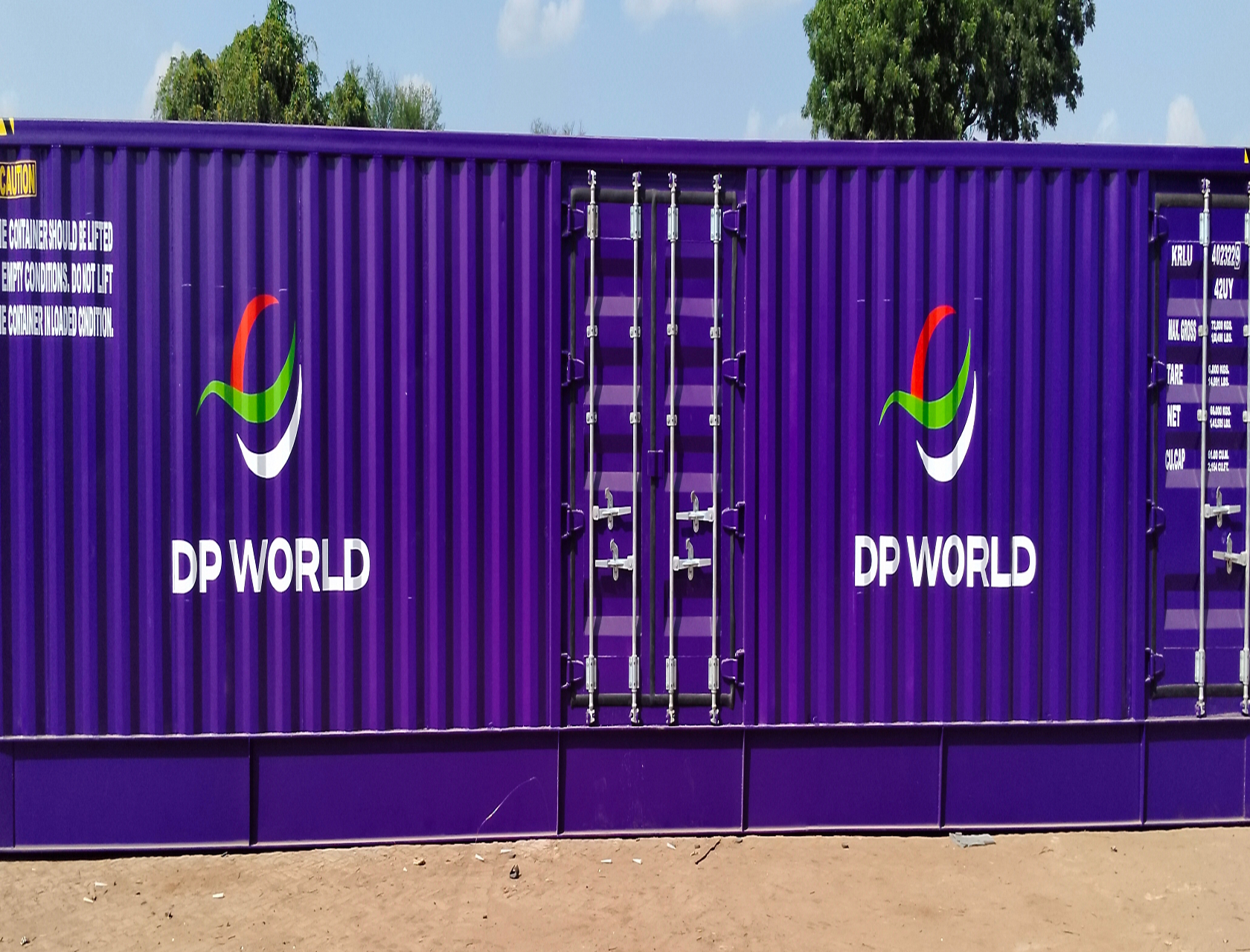

40 FEET OPEN TOP CIOLTAINER (40’X8’X8.5′)

40 FEET OPEN TOP COILTAINER (1)
40 FEET OPEN TOP COILTAINER (2)
40 FEET OPEN TOP COILTAINER (1) 40 FEET OPEN TOP COILTAINER (2)
40 FEET OPEN TOP COILTAINER (40'X8'X8.5')
EXTERNAL Length 12192+0,-10
Width 2438+0,-5
Height 2591+0,-5
INTERNAL Length 12084+0,-10
Width 2347+0,-5
Height 2152+0,-5
DOOR OPENING MID. SIDE Width 1510+0,-5
Height 1860+0,-5
DOOR OPENING SIDE Width 764+0,-5
Height 1860+0,-5
GROSS WEIGHT 80,000 KGS 176,369 LBS
GROSS WEIGHT 40 T. FOR ON AND LIFT OFF OF CONTAINER
TARE WEIGHT (±2%) 6,400 KGS 14,109 LBS
MAX. PAYLOAD 73,600 KGS 162,260 LBS
STACKING TEST
LOAD PER POST		 88,888 KGS 195,965 LBS

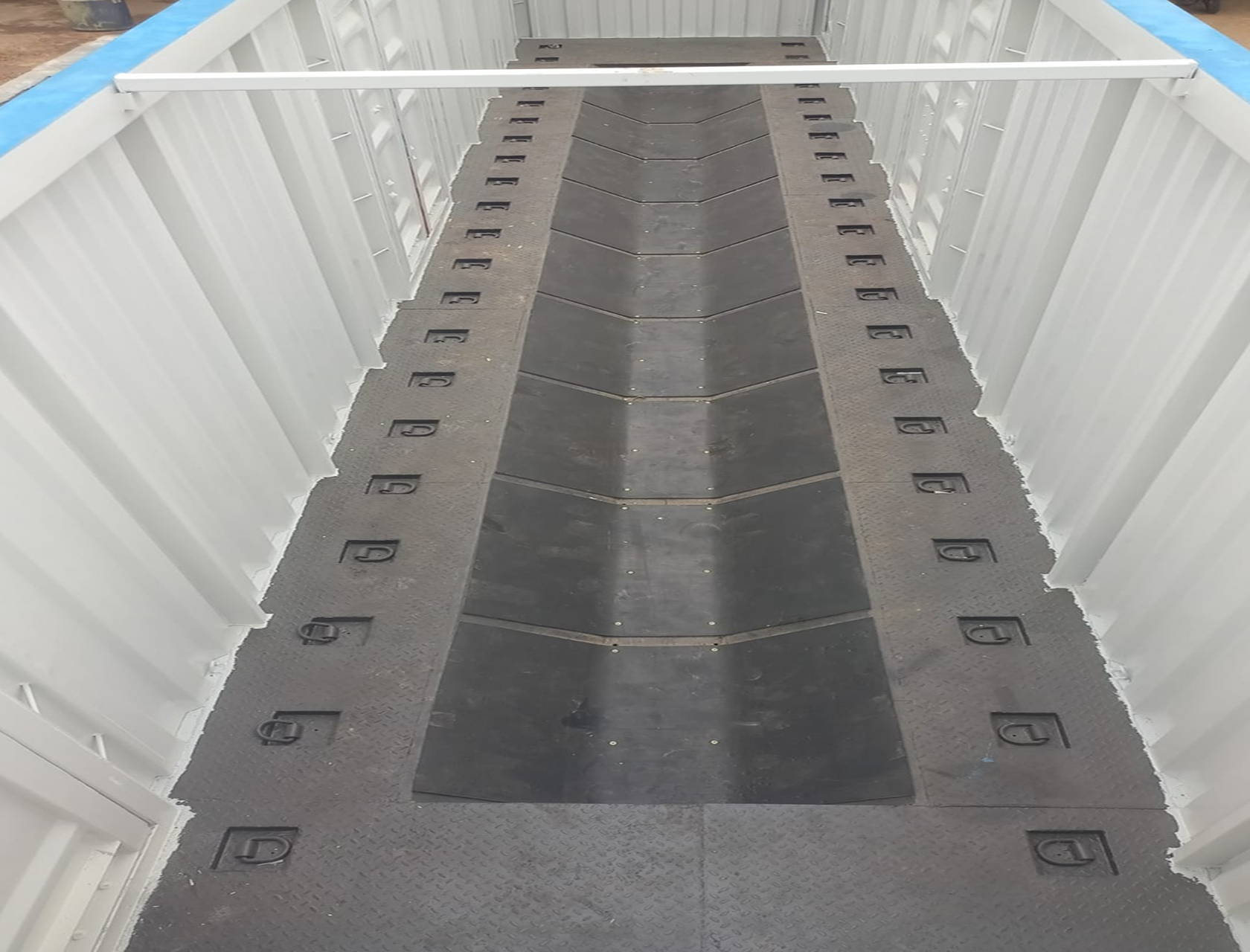

40 FEET HC OPEN TOP COILTAINER (40’X8’X9.5′)

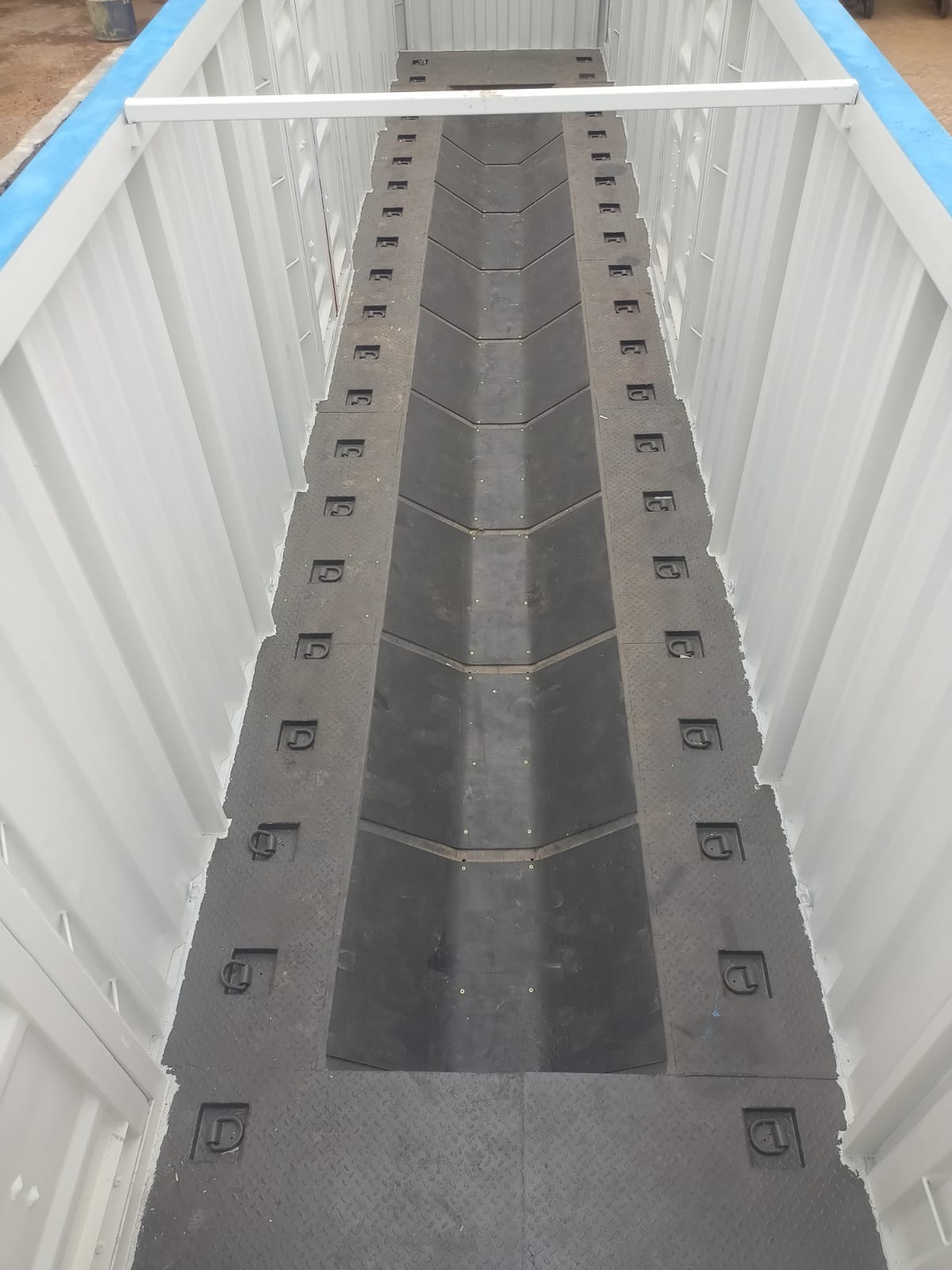

40 FEET HC OPEN TOP COILTAINER
40 FEET HC OPEN TOP COILTAINER
40 FEET HC OPEN TOP COILTANIER (40'X8'X9.5')
EXTERNAL Length 12192+0,-10
Width 2438+0,-5
Height 2896+0,-5
INTERNAL Length 12084+0,-10
Width 2330+0,-5
Height 2470+0,-5
DOOR OPENING MID. SIDE Width 1510+0,-5
Height 2077+0,-5
DOOR OPENING SIDE Width 764+0,-5
Height 2077+0,-5
GROSS WEIGHT 80,000 KGS 176,369 LBS
GROSS WEIGHT 40 T. FOR LIFT ON AND LIFT OFF OF CONTAINER
TARE WEIGHT (±2%) 7,100 KGS 15,652 LBS
MAX. PAYLOAD 72,900 KGS 160,717 LBS

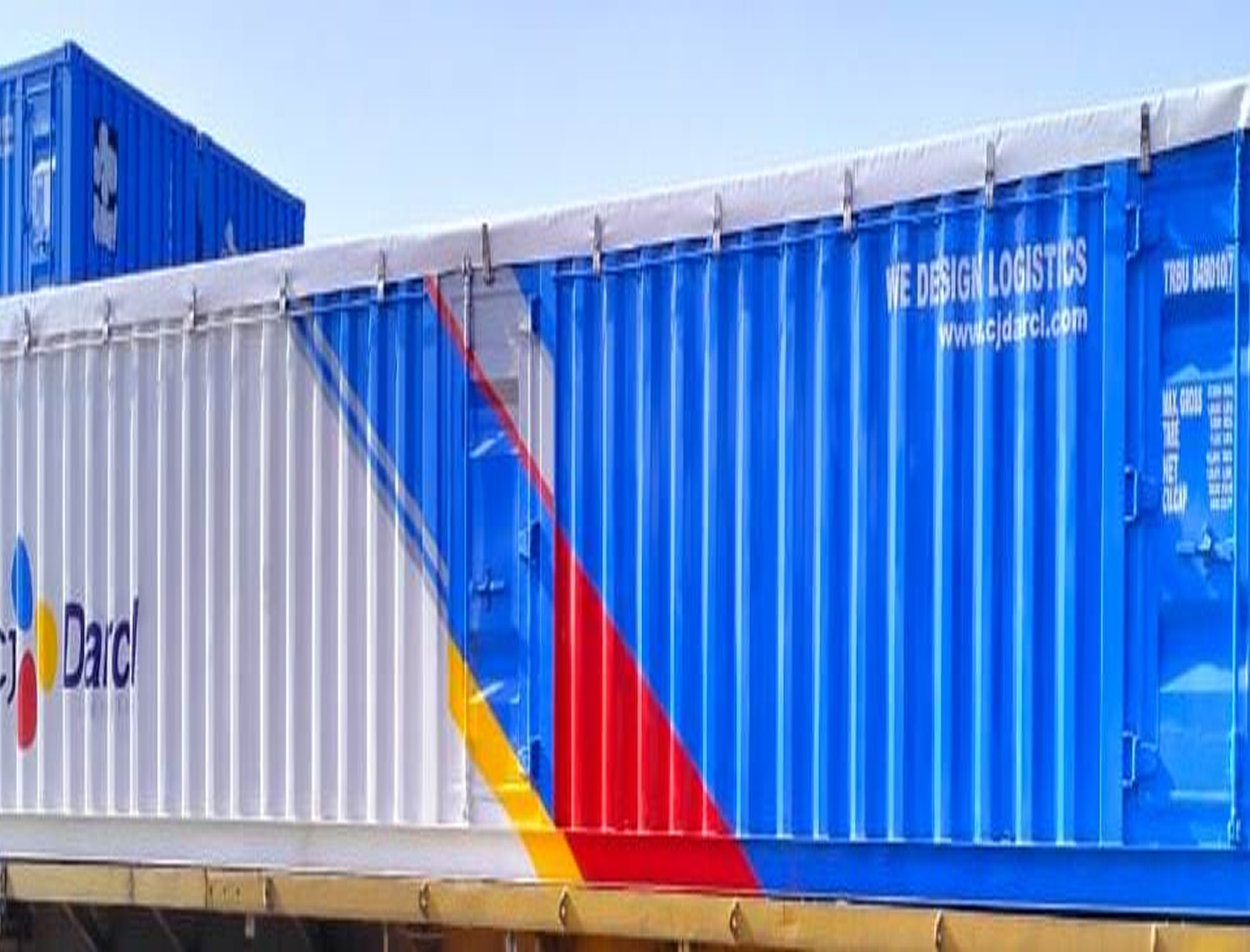

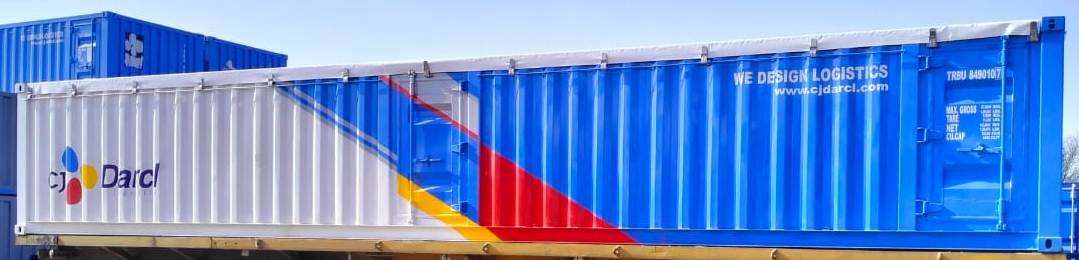

40 FEET DWARF OPEN TOP COILTAINER (40’X8.5’X6.3′)

40 FEET DWARF OPEN TOP COILTAINER (1)

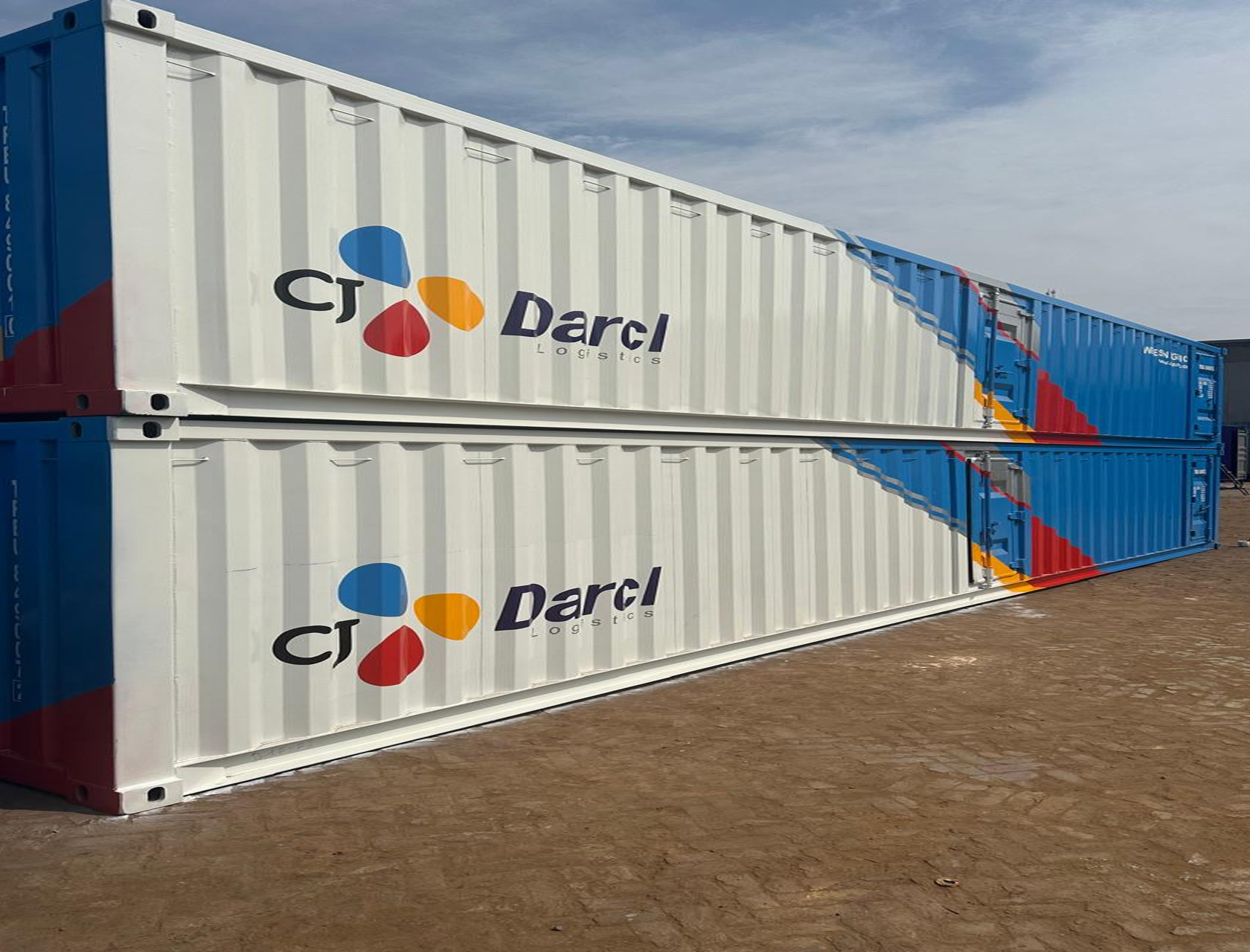

40 FEET DWARF OPEN TOP COILTAINER (2)
40 FEET DWARF OPEN TOP COILTAINER (1) 40 FEET DWARF OPEN TOP COILTAINER (2)
40 FEET DWARF OPEN TOP COILTAINER (40'X8.5'X6.3')
EXTERNAL Length 12192+0,-10
Width 2600+0,-5
Height 1930+0,-5
INTERNAL Length 12086+0,-10
Width 2461+0,-5
Height 1584+0,-5
DOOR OPENING MID. SIDE Width 764+0,-5
Height 1296+0,-5
DOOR OPENING SIDE Width 764+0,-5
Height 1296+0,-5
GROSS WEIGHT 73,000 KG 160,937 LBS
GROSS WEIGHT 40 T. FOR LIFT ON AND LIFT OFF OF CONTAINER
TARE WEIGHT (±2%) WITH
ROOF BOW & TARPAULIN		 55000 KG 12,125 LBS
MAX. PAYLOAD 67,500 KG 148,812 LBS
STACKING TEST
LOAD PER POST		 41,148 KG 90,715 LBS

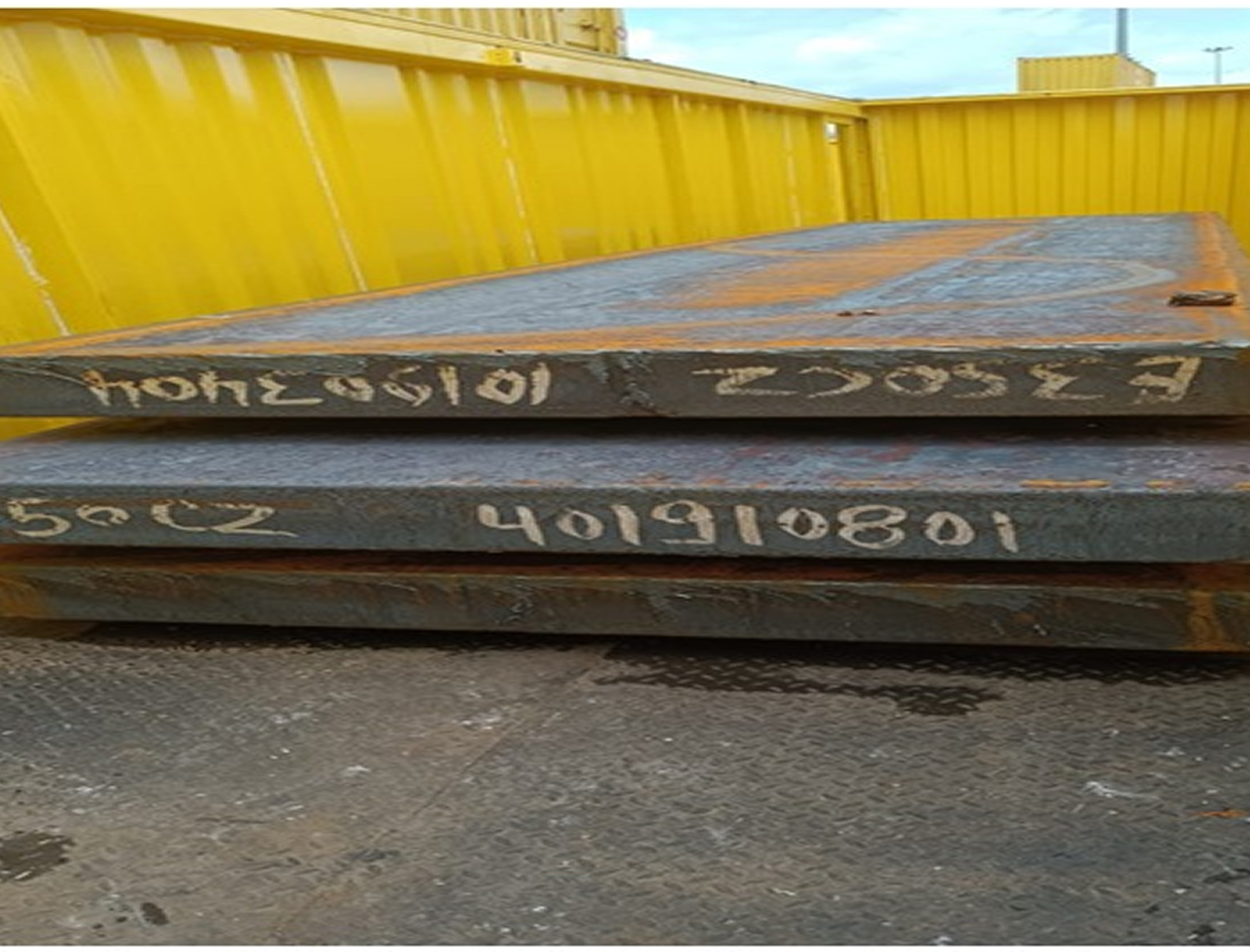

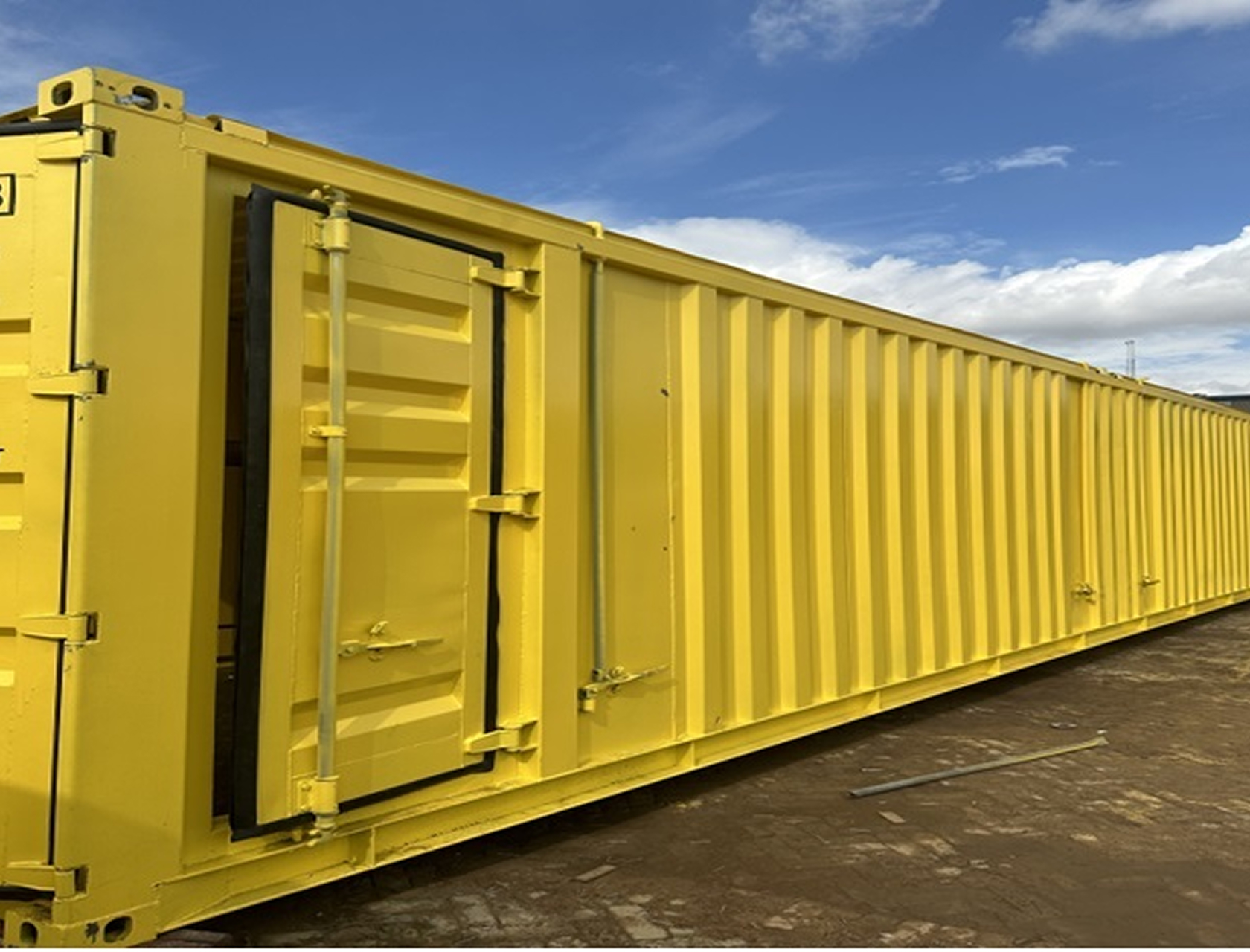

40 FEET UNIVERSAL CONTAINER OPENABLE TOP (40’X8’X9.5′)

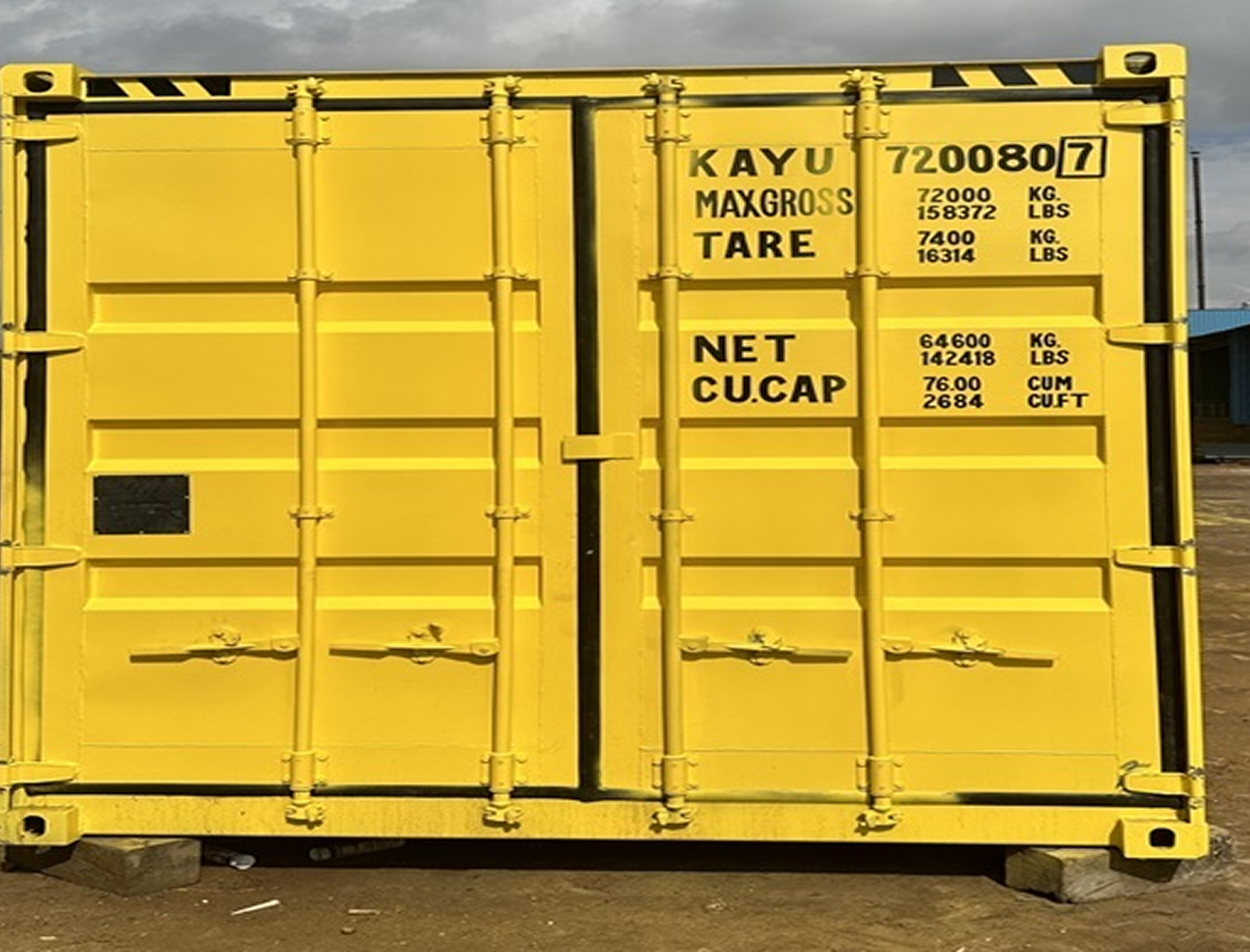

40 FEET UNIVERSAL CONTAINER OPENABLE TOP (1)
40 FEET UNIVERSAL CONTAINER OPENABLE TOP (1)-1
40 FEET UNIVERSAL CONTAINER OPENABLE TOP (2)
40 FEET UNIVERSAL CONTAINER OPENABLE TOP (1) 40 FEET UNIVERSAL CONTAINER OPENABLE TOP (1)-1 40 FEET UNIVERSAL CONTAINER OPENABLE TOP (2)
40 FEET UNIVERSAL CONTAINER OPENABLE TOP (40'X8'X9.5')
EXTERNAL Length 12192+0,-10
Width 2438+0,-5
Height 2896+0,-5
INTERNAL Length 12033+0,-10
Width 2338+0,-5
Height 2439+0,-5
REAR DOOR OPENING Width 2338+0,-5
Height 2340+0,-5
GROSS WEIGHT 72,000 KGS 158,732 LBS
GROSS WEIGHT 40 T. FOR LIFT ON AND LIFT OFF OF CONTAINER
TARE WEIGHT (±2%) 7,400 KGS 16,314 LBS
MAX. PAYLOAD 64,600 KGS 142,418 LBS

42 FEET HC OPEN TOP COILTAINER (42’X8.5’X9.5′)

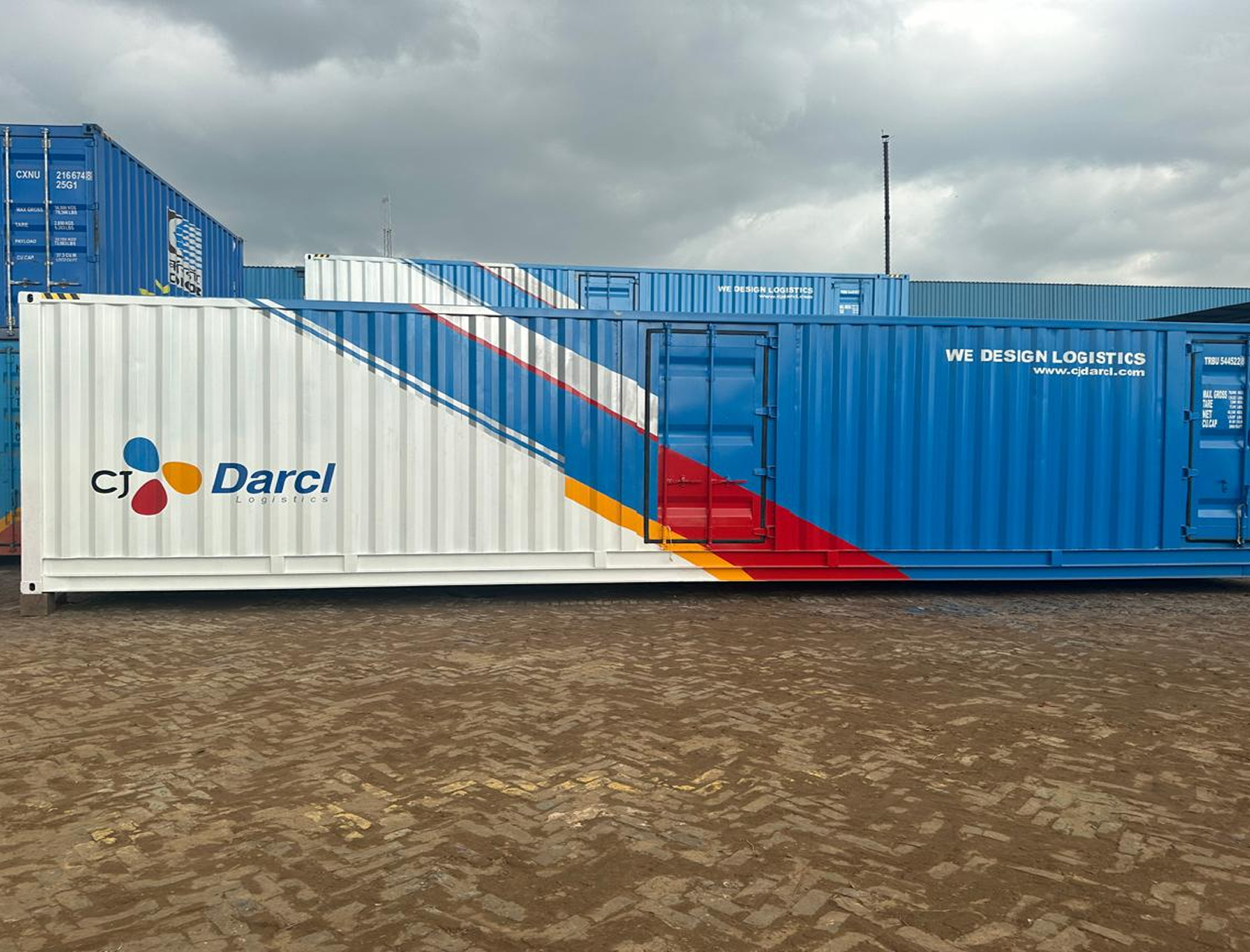

42 FEET HC OPEN TOP COILTAINER (1)

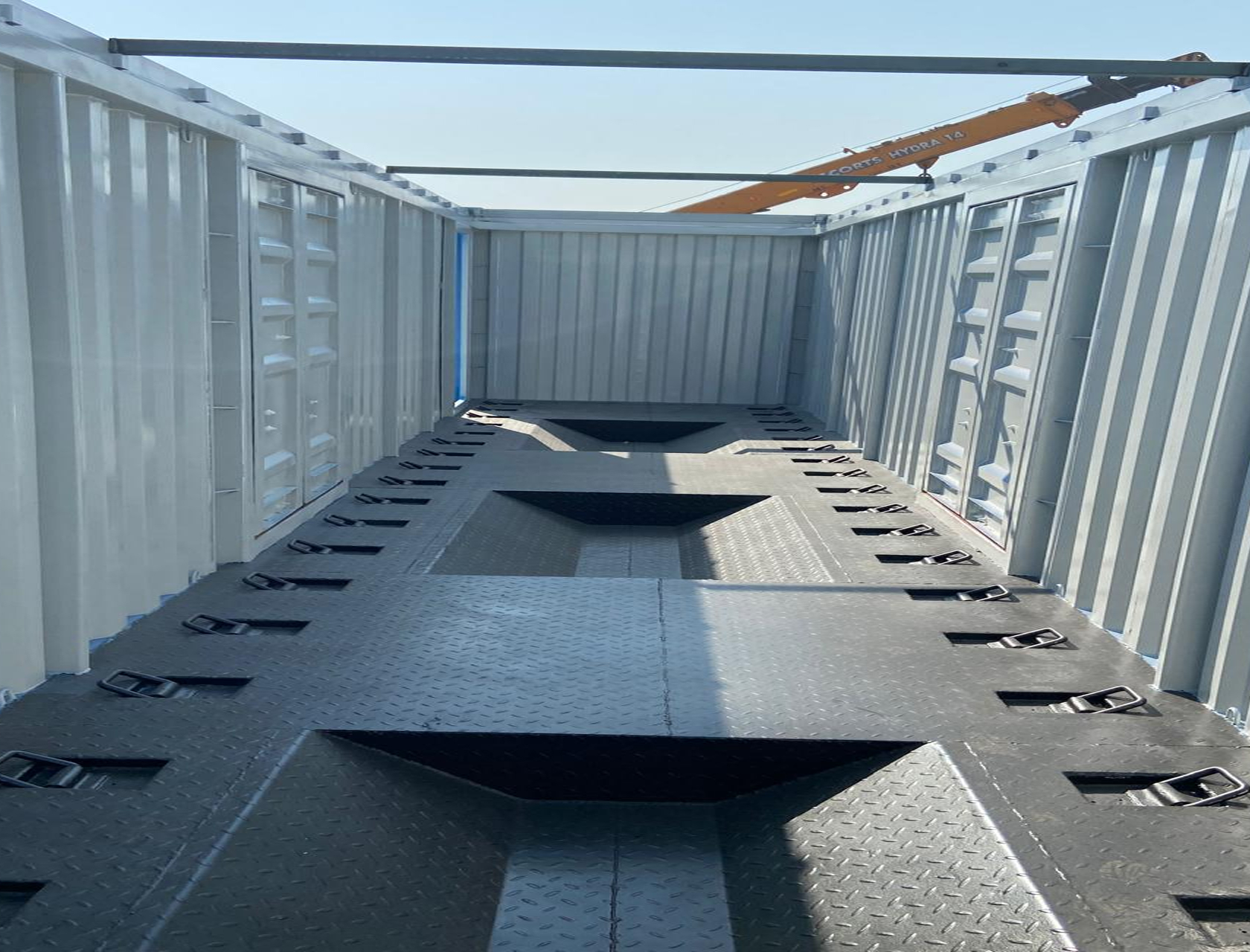

42 FEET HC OPEN TOP COILTAINER (2) - Copy
42 FEET HC OPEN TOP COILTAINER (1) 42 FEET HC OPEN TOP COILTAINER (2) - Copy
42 FEET HC OPEN COILTAINER (42'X8.5'X9.5')
EXTERNAL Length 12802+0,-10
Width 2600+0,-5
Height 2896+0,-5
INTERNAL Length 12704+0,-10
Width 2513+0,-5
Height 2549+0,-5
DOOR OPENING MID SIDE Width 1176+0,-5
Height 2262+0,-5
DOOR OPENING SIDE Width 764+0,-5
Height 2262+0,-5
GROSS WEIGHT 70,000 KG 154,323 LBS
GROSS WEIGHT 40T FOR LIFT ON AND LIFT OFF OF CONTAINER
TARE WEIGHT (±2%) 7900 KG 17,416 LBS
MAX. PAYLOAD 62,100 KG 136,907 LBS
STACKING TEST
LOAD PER POST		 91,440 KG 201,590 LBS

42 FEET DWARF OPEN TOP CONTAINER (42’X8.5,X6.3′)

42 FEET DWARF OPEN TOP CONTAINER
42 FEET DWARF OPEN TOP CONTAINER
42 FEET DWARF OPEN TOP CONTAINER (42'X8.5,X6.3')
EXTERNAL Length 12802+0,-10
Width 2600+0,-5
Height 1930+0,-5
INTERNAL Length 12704+0,-10
Width 2476+0,-5
Height 1756+0,-5
DOOR OPENING MID SIDE Width 764+0,-5
Height 1468+0,-5
DOOR OPENING SIDE Width 764+0,-5
Height 1468+0,-5
GROSS WEIGHT 68,000 KG 149,914 LBS
GROSS WEIGHT 40T FOR LIFT ON AND LIFT OFF OF CONTAINER
TARE WEIGHT (±2%) 5000 KG 11,023 LBS
MAX. PAYLOAD 63,000 KG 138,891 LBS
ALLOWABLE STACKING
LOAD FOR 1.8*G		 91,440 KG 201,590 LBS

42 FEET HC OPEN TOP COILTAINER(42’X8’X9.5′)

40 FEET DWARF OPEN TOP COILTAINER (1)
40 FEET HC OPEN TOP COILTAINER
40 FEET DWARF OPEN TOP COILTAINER (1) 40 FEET HC OPEN TOP COILTAINER
42 FEET HC OPEN TOP COILTAINER (42' X8' X9.5')
EXTERNAL Length 12802+0,-10
Width 2438+0,-5
Height 2896+0,-5
INTERNAL Length 12688+0,-10
Width 2331+0,-5
Height 2352+0,-5
DOOR OPENING MID. SIDE Width 1510+0,-5
Height 2046+0,-5
DOOR OPENING SIDE Width 764+0,-5
Height 2046+0,-5
GROSS WEIGHT 67,320 KGS 148,415 LBS
GROSS WEIGHT 40 T. FOR LIFT ON AND LIFT OFF OF CONTAINER
TARE WEIGHT (±2%) 7,100 KGS 15,652 LBS
MAX. PAYLOAD 62,220 KGS 132,762 LBS

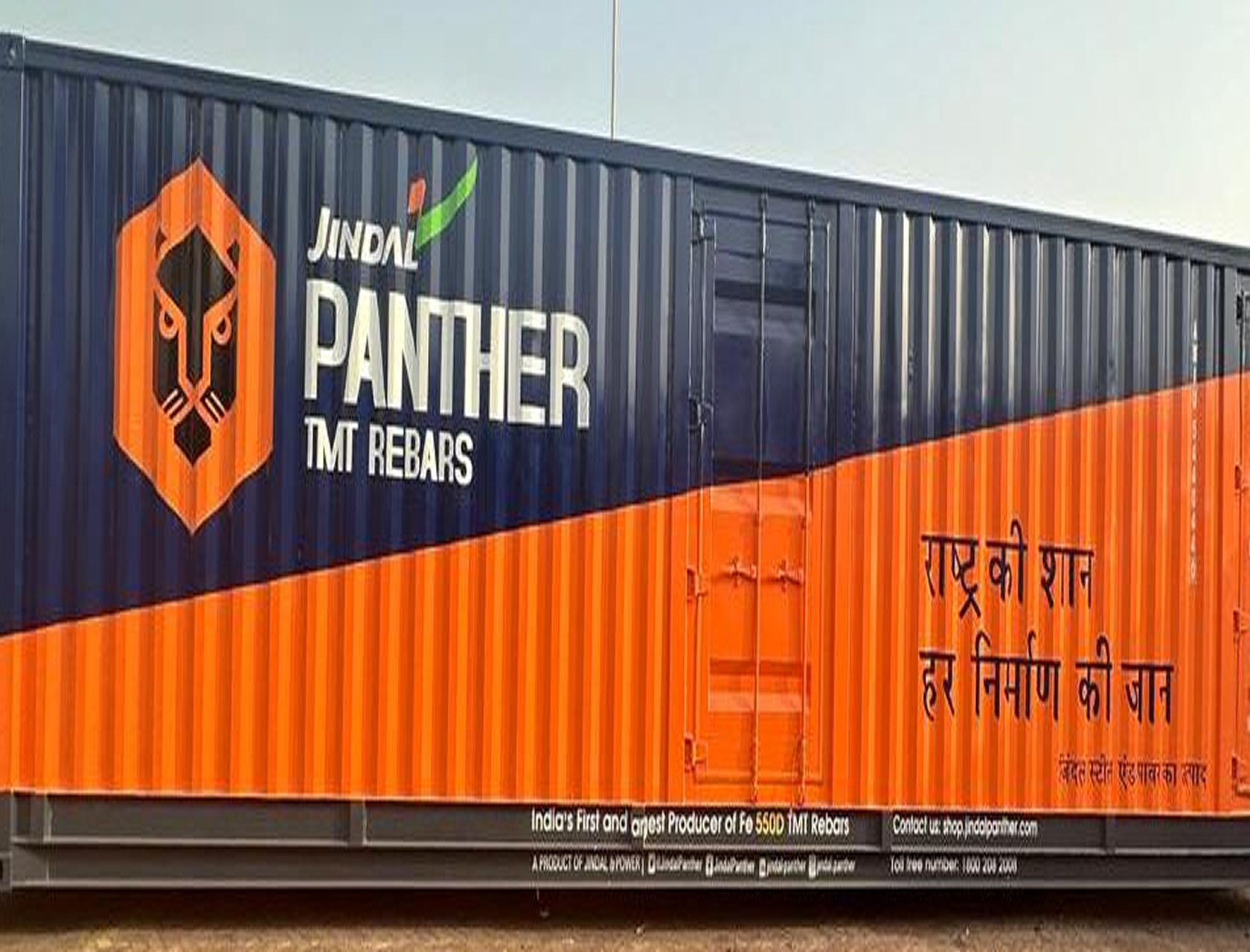

42 FEET HC FOR COIL AND TMT BARS (42′ X8′ X9.5′)

42 FEET HC FOR COIL AND TMT BARS
42 FEET HC FOR COIL AND TMT BARS
42 FEET HC FOR COIL AND TMT BARS (42' X8' X9.5')
EXTERNAL Length 12802+0,-10
Width 2438+0,-5
Height 2896+0,-5
INTERNAL Length 12694+0,-10
Width 2351+0,-5
Height 2550+0,-5
DOOR OPENING MID SIDE Width 1176+0,-5
Height 2262+0,-5
DOOR OPENING SIDE Width 764+0,-5
Height 2262+0,-5
GROSS WEIGHT 70,000 KG 154,323 LBS
GROSS WEIGHT 40T FOR LIFT ON AND LIFT OFF OF CONTAINER
TARE WEIGHT (±2%) 6900 KG 15,211 LBS
MAX. PAYLOAD 63,100 KG 139,111 LBS
STACKING TEST
LOAD PER POST		 40,000 KG 88,185 LBS

20 FEET TANK CONTAINERS (20′ X8.5′ X9.5′)

TANK CONTAINER - Copy
TANK CONTAINER 2
TANK CONTAINER - Copy TANK CONTAINER 2
20 FEET TANK CONTAINERS (20' X8.5' X9.5')
EXTERNAL Length 6058+0,-6
Width 2600+0,-5
Height 2896+0,-5
GROSS WEIGHT 36,600 KG 80,689 LBS
TARE WEIGHT (±2%) 3600 KG 7936 LBS
MAX. PAYLOAD 33,000 KG 72,752 LBS
CU.CAP 31.OO CUM 1,094 CU.FT
STACKING TEST
LOAD PER POST		 96,000 KG 211,644 LBS

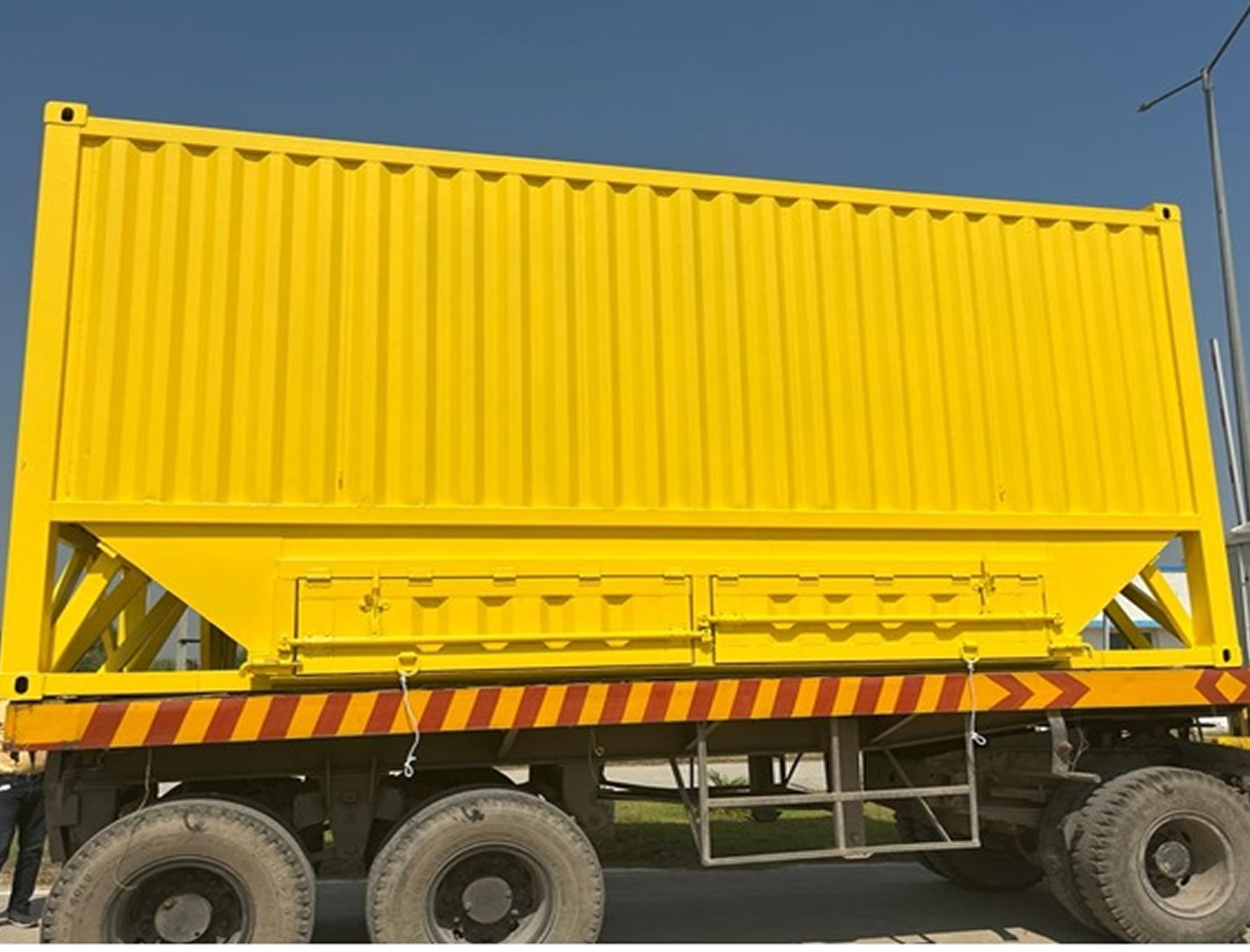

HOPPER CONTAINER (20′ X8.5′ X9.6′)

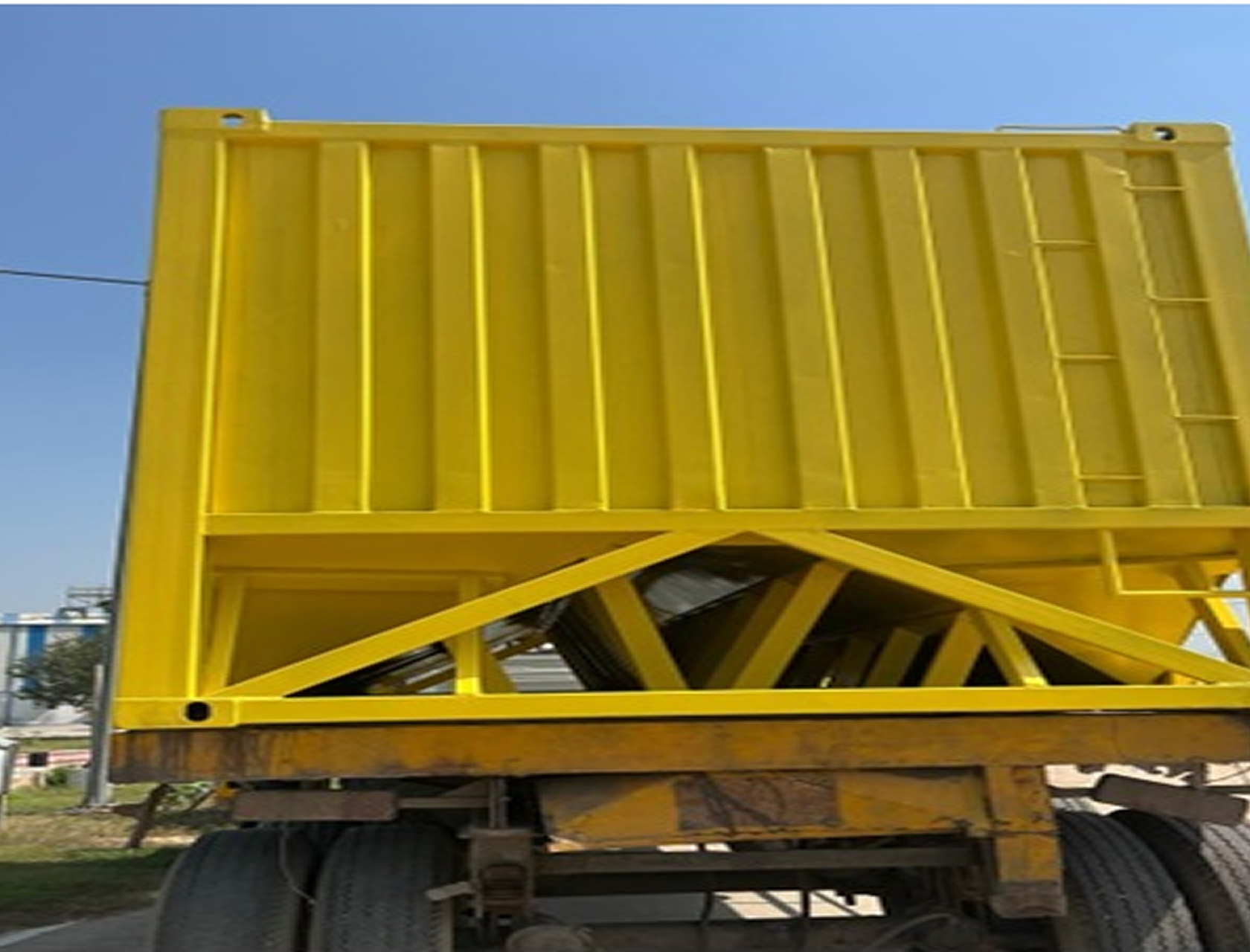

HOPPER CONTAINER 2
HOPPER CONTAINER

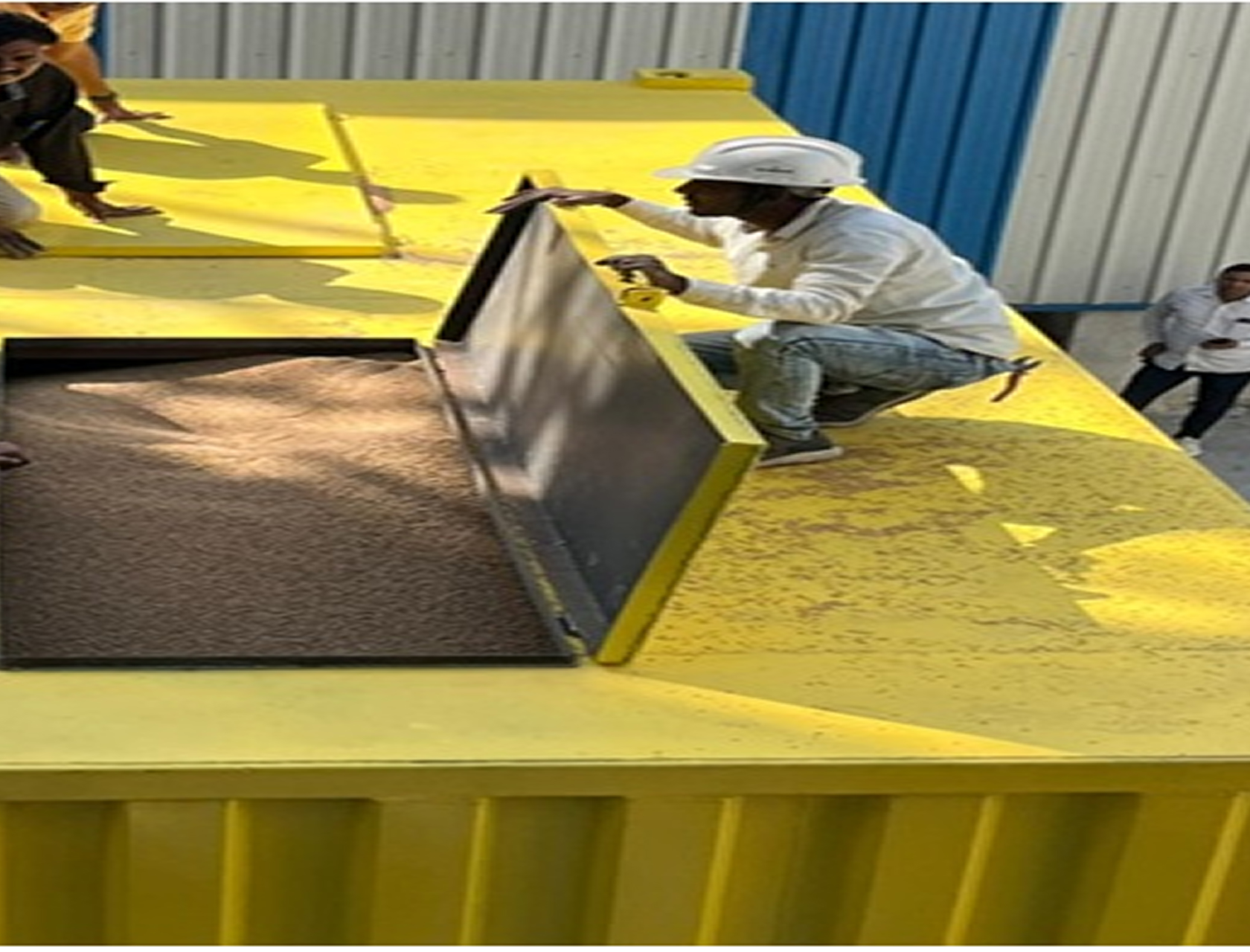

HOPPER CONTAINER 3
HOPPER CONTAINER 2 HOPPER CONTAINER HOPPER CONTAINER 3
HOPPER CONTAINER (20' X8.5' X9.6')
EXTERNAL Length 6058+0,-6
Width 2600+0,-5
Height 2956+0,-5
INTERNAL Length 5946+0,-5
Width 2504+0,-5
Height 1987+0,-5
DOOR OPENING Width 473+0,-5
Height 2730+0,-5
GROSS WEIGHT 36,500 KG 80,468 LBS
TARE WEIGHT (±2%) 3,800 KG 8,377 LBS
MAX. PAYLOAD 32,700 KG 72,091 LBS
CU.CAP 37.00 CUM 1,306 CU.FT
STACKING TEST
LOAD PER POST		 96,000 KG 2,11,643 LBS

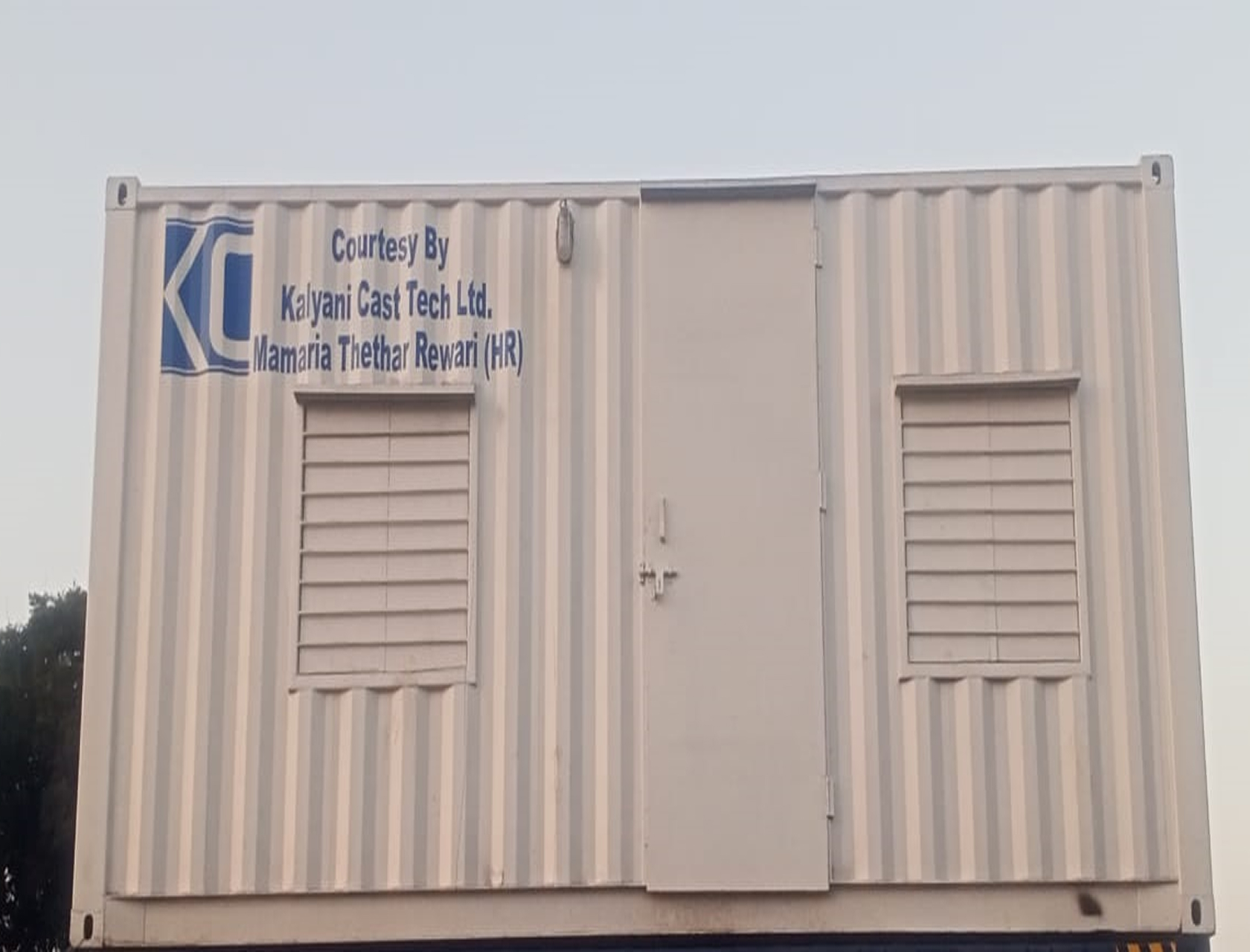

PORTA CABINS/BUNK HOUSES

PORTA CABINS/BUNK HOUSES

containerized hosuing mumbai police (4) 1
containerized hosuing mumbai police (4) 1

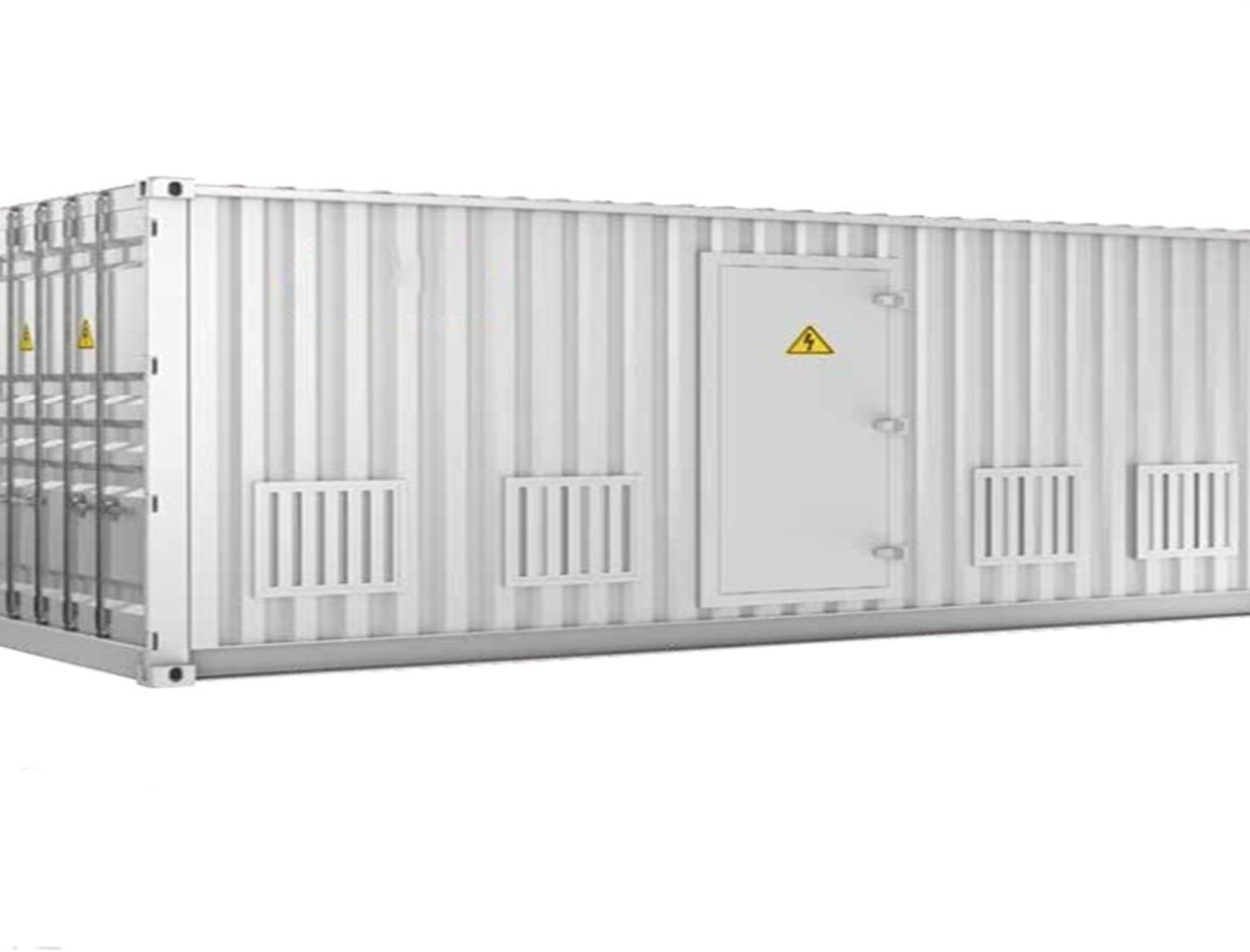

BESS CONTAINERS

BESS CONTAINERS

BESS CONTAINER (1)
BESS CONTAINER (1)

OFFICE CONTAINERS/CONTAINERIZED HOUSING-OFFICE UNIT

OFFICE CONTAINERS/CONTAINERIZED HOUSING-OFFICE UNIT

containerized hosuing mumbai police (4) 1
containerized hosuing mumbai police (4) 1

OTHER PRODUCTS

corner castings

Special Corner Casting

MG Coupler Components

CI Brake Blocks

adapter for WDG4 loco

bearing housing for electrical loco DIN17182 material

corner castings for containers

motor hub traction motors

side buffer plungers for railway coaches

end covers for electrical locos

Container

Container 4' Feet

Container 6' Feet

Container 8' Feet

Container 12' Feet
